Running Terraform with Cloudify (Part 1)

In this article we will be using some basic functionalities such as:

  1. Basic knowledge on Terraform
  2. Inputs — for parametrization
  3. Intrinsic functions — to work with credentials and pass the inputs to terraform template
  4. Capabilities — Exposing terraform outputs

If you are not familiar with how to work with the items above I’ll recommend to go over the following articles:

  1. EC2 instance with Cloudify
  2. capabilities

What you’ll learn

In this article we will go through a few examples how to run Terraform template with Cloudify.

  1. Package the terraform template as part of the Blueprint package
  2. Run the terraform template by referencing to URL or Public Git Repo
  3. Run the terraform template by referencing to a private Git Repo

Prerequisites

You’ll need to have the following setup on you development machine.

Git — To work with our tutorial examples

Python 3.7 — To run Cloudify CLI (cfy)

Docker — To run Cloudify Manager container

AWS access key id and secret access key with permissions to create and delete EC2 instances. You can follow the AWS documentation on how to get those in the link

What is Cloudify?

Cloudify is an orchestration tool that can do many things.

In our current example I’ll walk you step by with the best practices on what is required to spin an EC2 instance.

We will create a simple blueprint file that describes how EC2 instance should be created and upload it to Cloudify Manager.

To spin an EC2 instance we will created and install a deployment. As part of it Cloudify Manager will connect to AWS and create an EC2 instance as described in the blueprint.

Let’s Start

Cloudify Installation: Running locally Cloudify Manager is very easy. You’ll need to install locally on your machine docker and run on it Cloudify Manager Community edition container.

To run Cloudify Manager Community edition simply run the following command. You might wait some time until the application is fully up and running

sudo docker run --name cfy_manager_local -d --restart unless-stopped -v /sys/fs/cgroup:/sys/fs/cgroup:ro --tmpfs /run --tmpfs /run/lock --security-opt seccomp:unconfined --cap-add SYS_ADMIN -p 80:80 -p 8000:8000 cloudifyplatform/community-cloudify-manager-aio:latest

Congratulations now you can browse to http://localhost and login with default user and password admin:admin

Cloudify CLI installation

You have two ways to work with Cloudify Manager. You can work either with UI or CLI. In this article we will work CLI.

To install Cloudify CLI run the following command:

pip install cloudify==6.1.0

Installing Plugins

Before we start we need to install AWS and Utilities Plugin

To simplify let’s upload all supported plugins

cfy plugins bundle-upload

Terraform Template

The terraform template we will be working with is very simple. It has two files variables.tf and main.tf

There are 4 variables:

  1. For AWS authentication access_key , secret_key and aws_region
  2. aws_amis to programatically select the right AMI image per selected region.

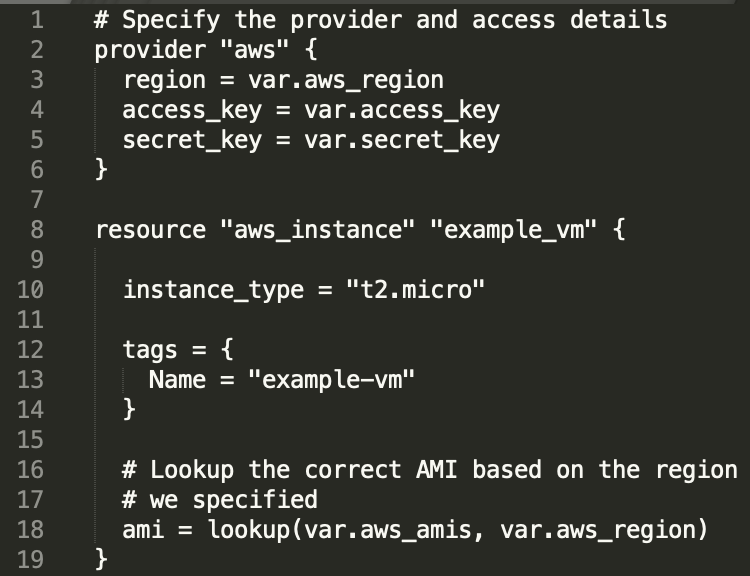

The main.tfterraform template file

It uses the variables above to provision EC2 instance of size t2.micro and will be tagged with example-vm name

Package the terraform template as part of the Blueprint package

In this example we will package the terraform as part of the Blueprint package. The terraform template spinning an EC2 instance on AWS.

First let’s checkout the project:

git clone git@github.com:cloudify-community/cloudify-tutorial.git
cd cloudify-tutorial/terraform/tf_01_from_a_file

You’ll find there two files and one directory.

  1. blueprint.yaml — The blueprint that we will be using to run the Terraform template
  2. terraform.zip — The terraform template we will be using
  3. template — the directory that contains the Terraform Template source code

Let’s walk through the blueprint

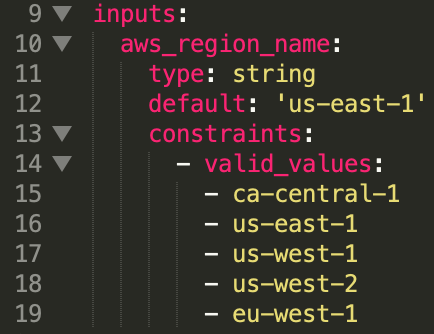

On the inputs side the only parameter we expect to get is the region, which has us-east-1 as a default value.

To run the terraform template we need 2 node types.

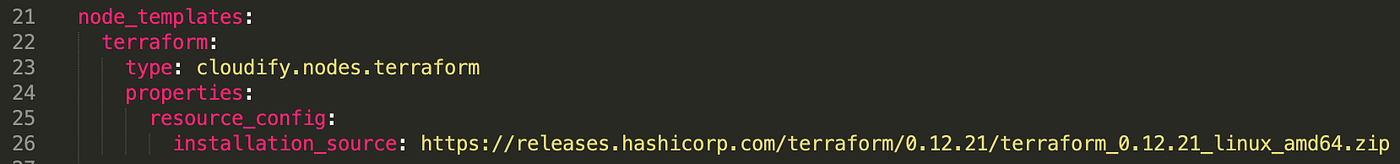

The first node type describes the terraform binary we are going to use. When we will running the example the binary file will be downloaded. So you must have the access to the URL you are providing.

For the full list of the properties you can read in the link

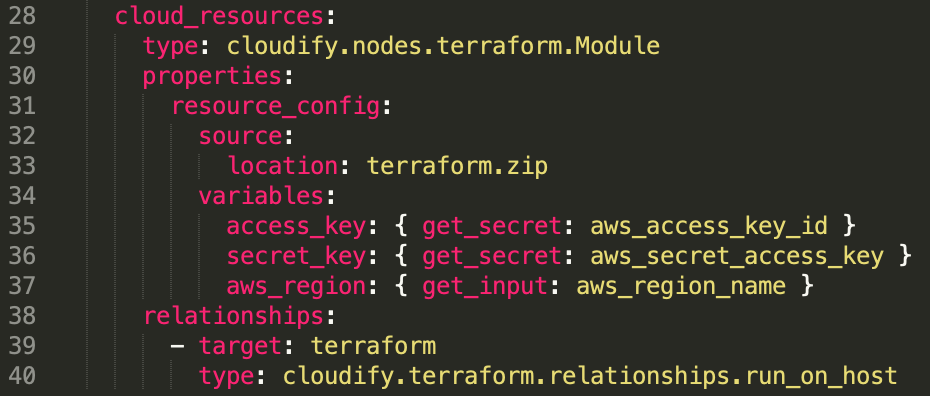

The second node type describe the module that should executed with all the parameters

The main properties you should be aware of are:

  1. The source location that points to the relative path inside the blueprint package.

2. Variables — the values to pass to the terraform template. In our case we are passing AWS credentials from the secret store and the AWS Region from the input

3. run_on_host relationship that connects the module type to the terraform binary.

For the full list of the properties you can read in the link.

Let’s run the example.

cfy apply

Run the terraform template by referencing to URL or Public Git Repo

An alternative option is to store the terraform template remotely either a URL to a ZIP or it can be public Git Repo.

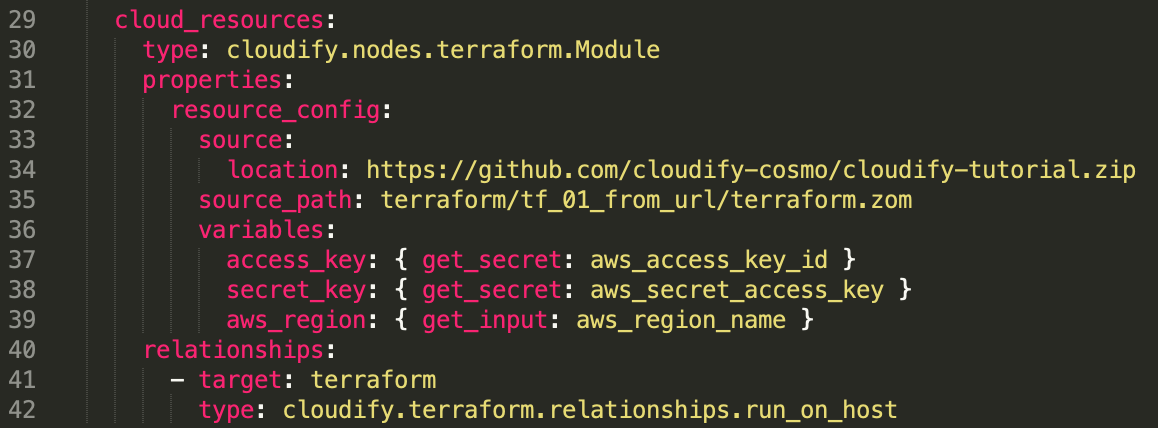

The only changes from the previous example is the Module node

The location is pointing to the ZIP file it can be a Git repo as well. In case of the Git Repo the url should end with .git .

If the template is not in the root we have to specify the source_path where it’s located.

to run the example run the following command within cloudify-tutorial directory

cd terraform/tf_02_from_url
cfy apply

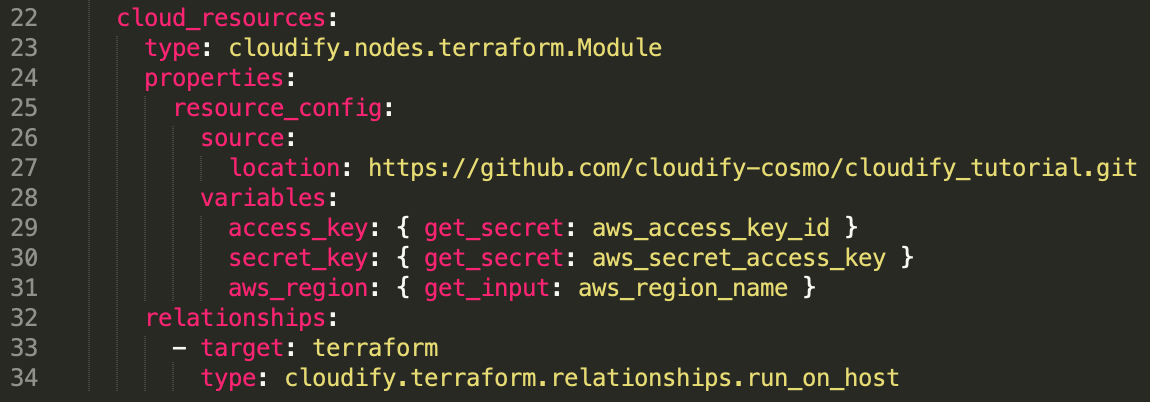

For public git example

cd terraform/tf_04_public_git
cfy apply

Run the terraform template by referencing to a private Git Repo

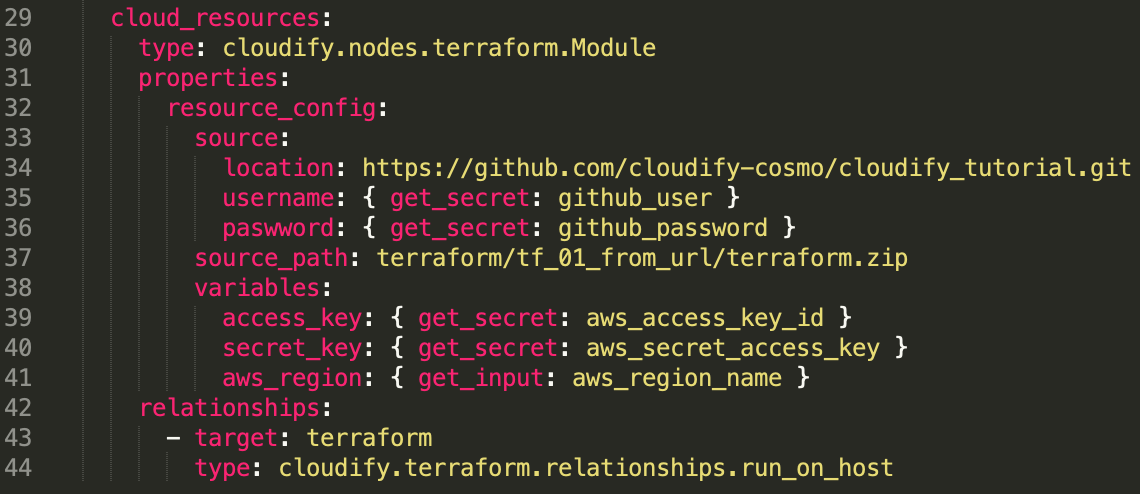

In case you are using a private Git Repo or a URL that requires basic authentication. You can provide user name and password . In our case we have pre created them in the secret store. See the example below.

to run the example run the following command within cloudify-tutorial directory

cd terraform/tf_03_private_git
cfy apply

The benefits of using Git over template inside the blueprint package

Looking at the the GitOps best practices you would like to always have a git repo for your terraform template. All the changes can go through code review and you can always track the changes.

In case you’ve applied changes to your Git repo after you created a deployment you can always run reload workflow to pull the newest changes.

To reload the changes, run the following command, replace the DEPLOYMENT_ID with one of the examples above tf_02_from_url , tf_03_private_git , tf_04_public_git

cfy executions start -d DEPLOYMENT_ID refresh_terraform_resources
